CMCD Analytics Guide

Updated

CMCD is a specification for transmitting data for analytics purposes. We use Grafana as a tool to visualize this data, allowing you to visualize event data in real-time.

CMCD reports are currently available to enterprise customers as an add-on. Contact your Sales Representative or Account Manager if you wish to know more, or are interested in a trial.

Login & Navigation

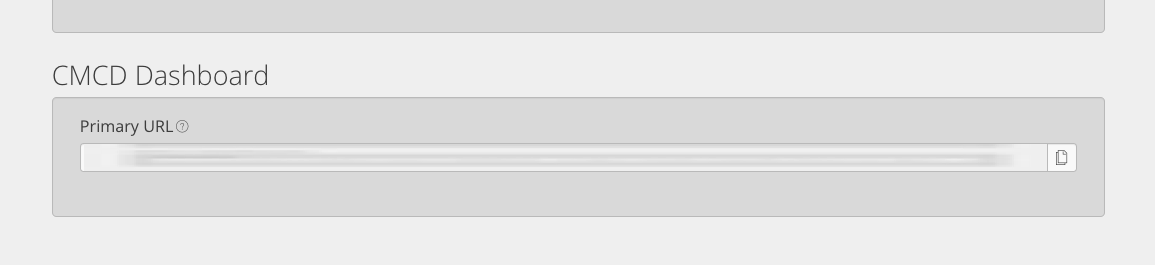

You can access CMCD dashboard for a specific event via the link provided in the Event Overview section (this will filter the dashboard to specifically show metrics for your event). Copy the link and paste it into your browser to see the dashboard


Dashboard

Filters

There are several filters on the dashboard that allow you to focus on specific data points such as filtering for data that come from specific events, specific countries etc. The default setting for these filters is set to 'All' which means all fields will be included within the dashboard charts

Filter

Description

Country

A country code that represents the viewer's geographic location.

e.g. AU

Device Type

The device used to make the request.

Can be either Desktop, Mobile or Smart TV

Operating System

The user’s operating system used to make the request

e.g. Mac OS X

Browser

The user’s browser used to make the request

e.g. Chrome

Time

By default, the dashboard is set to show data from the last hour and is refreshed automatically every 1 minute.

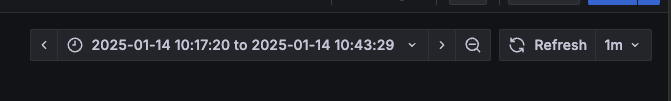

You can adjust the time the dashboard is refreshed by clicking on the dropdown where it says “1m” on the top right of the dashboard. Also you can change the time picker in the same menu from “Last 1 hour” to another time interval to see data from a different time period.

NOTE: If your event uses DVR, the dashboard link from the StreamShark Event Overview page will link you to the CMCD dashboard with a time range automatically configured to when the event was switched from PRE to Main until the event was switched from Main to POST. e.g.



Dashboard metrics reference

There are several charts used to display real time information about your Event. This section will go into detail about what each chart is and a relevant description.

Metric

Description

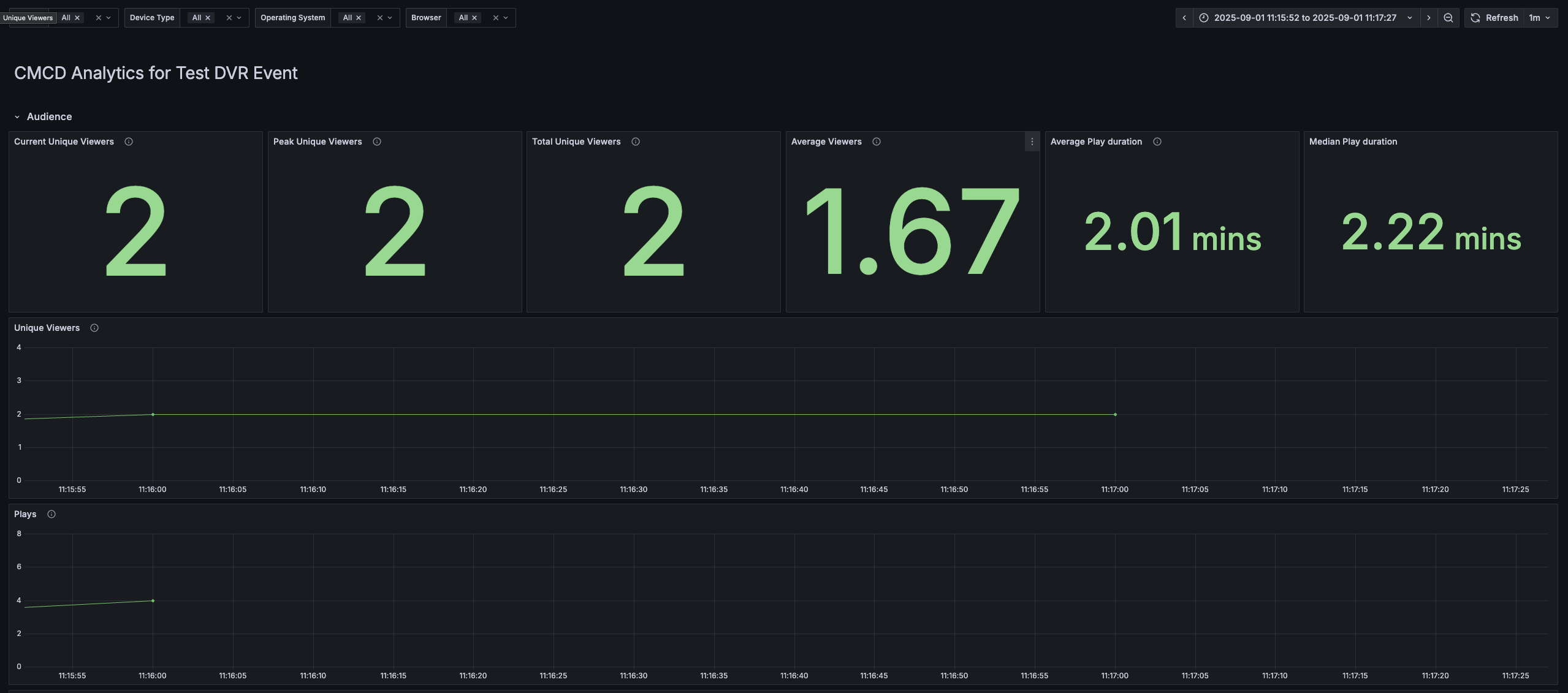

Current Unique Viewers

This metric shows the most recent data point for the number of unique viewers, based on the last minute of the specified time range.

For details, refer to the Unique Viewers Timeline Chart

Peak Unique Viewers

This metric shows the highest number of unique viewers at any point during the specified time range.

Total Unique Viewers

This metric represents the total number of individual users who have accessed the event at least once within the defined timeframe

Average Viewers

This metric shows the average number of unique viewers during the specified time range

Average Play Duration

This metric shows the average watch time, calculated from the total viewing duration of all unique users

Median Play Duration

This metric shows the median watch time, calculated from the total viewing duration of all unique users.

Unique Viewers

This timeline chart updates every minute and displays the number of unique viewers actively watching the event at each moment

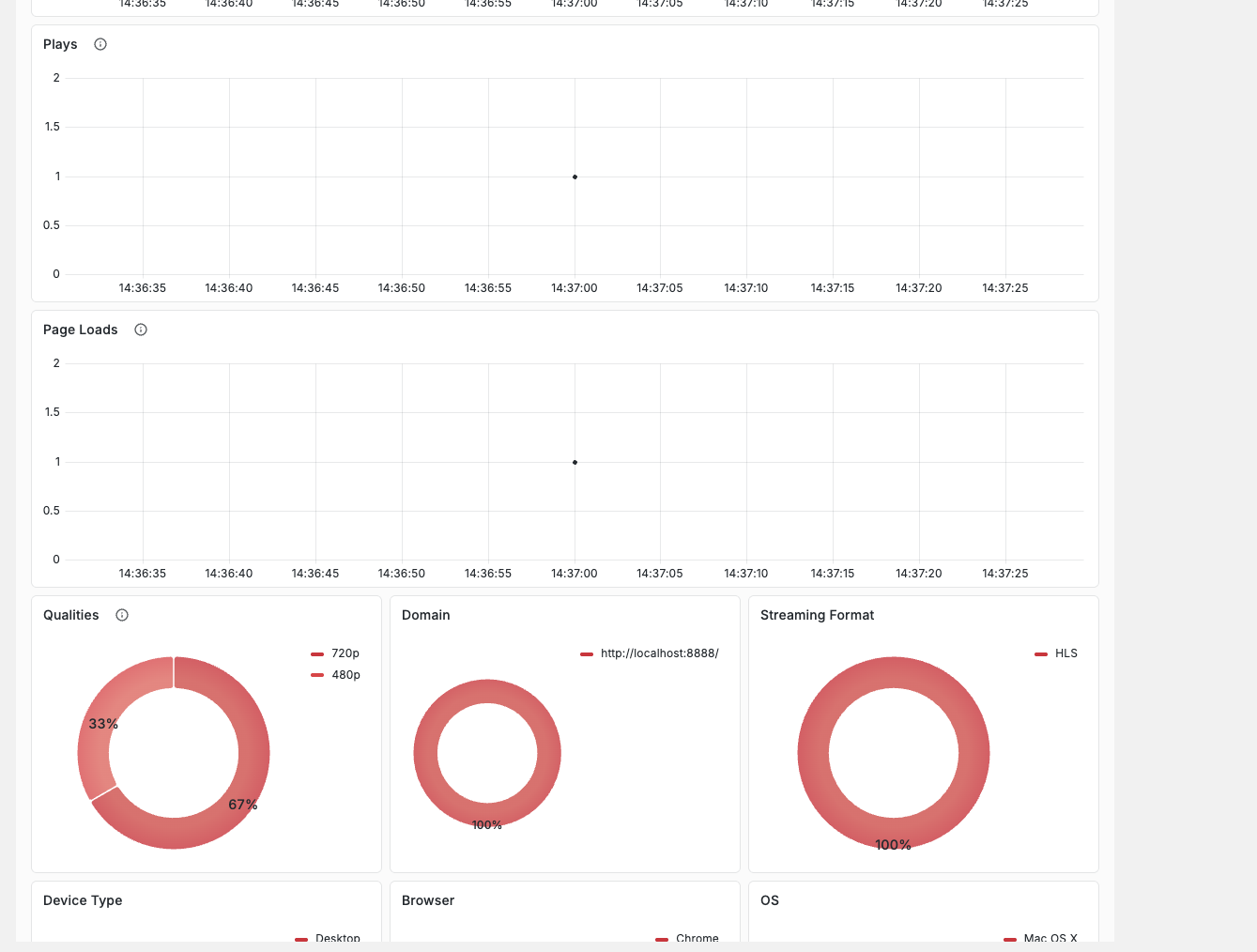

Plays

This metric tracks the number of viewers who initiated a video playback session and had it load successfully—meaning they clicked the play button and the video started as expected.

Page Loads

This metric shows the number of viewers who successfully loaded the player page, where the video is ready to start playback.

Qualities

This pie chart analyzes the video quality preferences of users during the specified time period. It calculates how much time users spend watching videos in each quality level (e.g., 240p, 480p, 1080p, etc.) and then shows the percentage of total viewing time that was spent in each quality.

It tracks the total time users spend watching videos in each quality and compares it to the total time users were active.

Domain

This pie chart visualizes the distribution of traffic across domains. It shows the percentage of total activity coming from each domain

Streaming Format

This pie chart shows the distribution of users by streaming format (e.g., HLS, DASH, etc.) during the specified time period

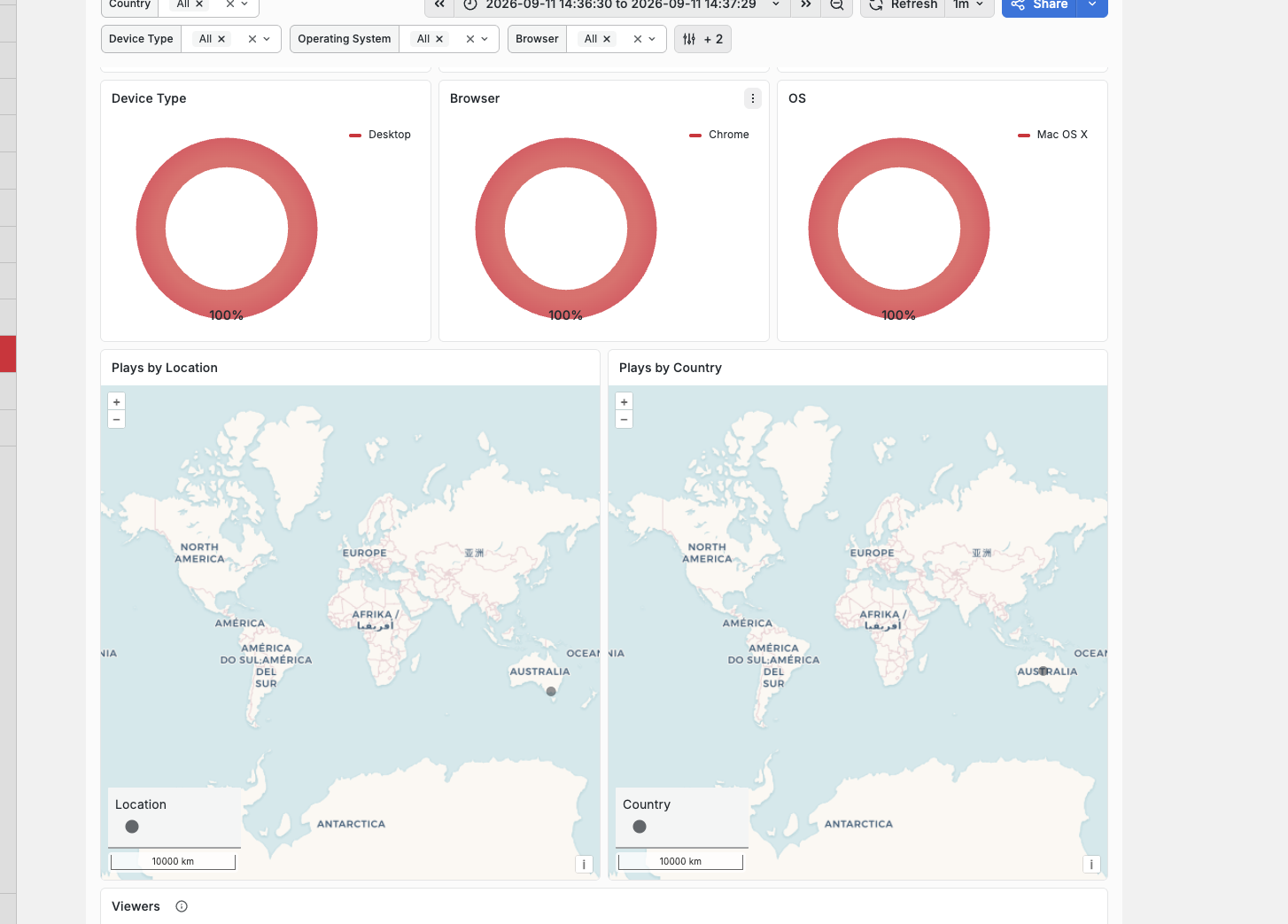

Device Type

This pie chart displays the breakdown of users by device type (e.g., desktop, mobile, tablet, smart TV) during the selected time period. It shows the percentage of total views coming from each device.

Browser

This pie chart illustrates the distribution of users across different web browsers (e.g., Chrome, Safari, Firefox, Edge) during the specified time period

OS

This pie chart shows the distribution of users by operating system (e.g., Windows, macOS, iOS, Android) during the selected time period

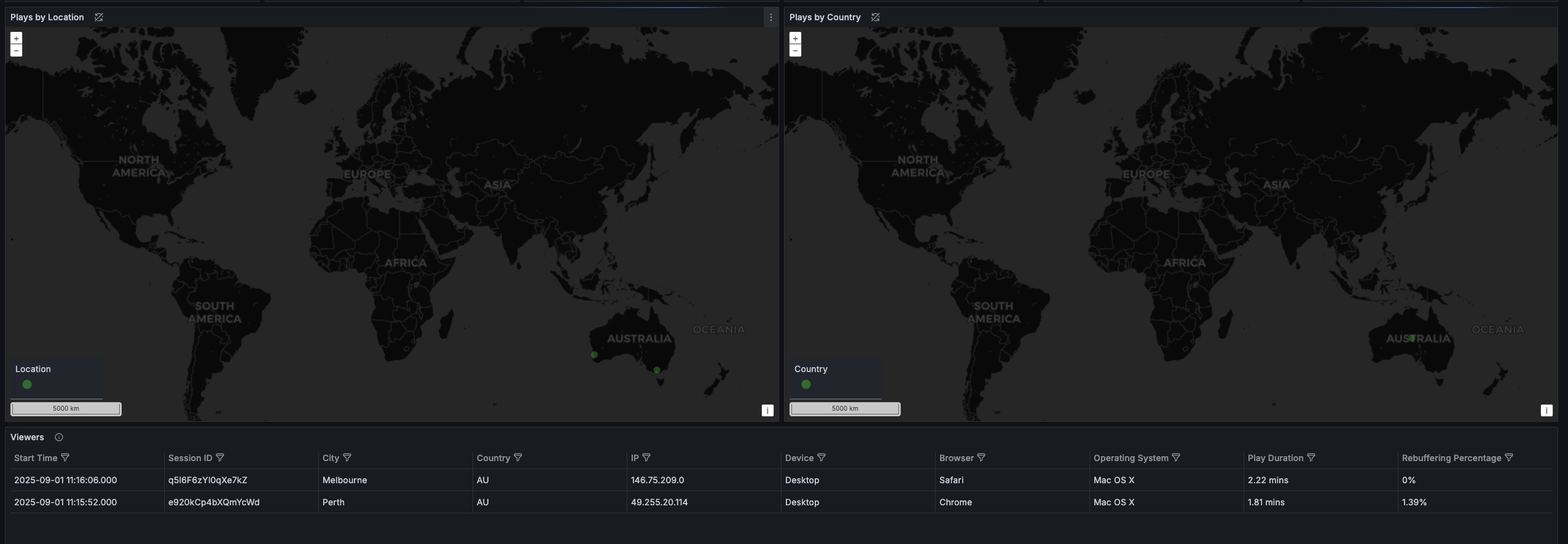

Plays By Location

This map displays markers that represent the number of viewers in each city, based on their location during the time period

Plays By Country

This map displays markers that represent the number of viewers in each country, based on their location during the time period

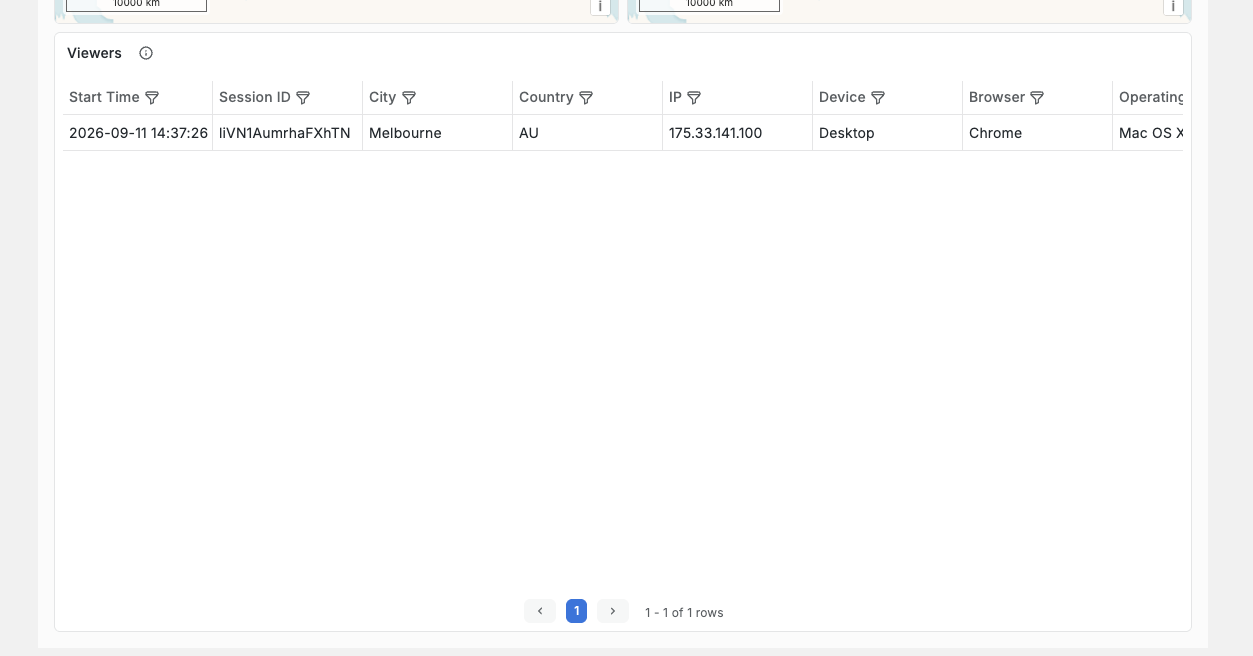

Viewers

Displays individual viewer data within the specified time range, including the following details - User must have started a playback session within the time range:

  • Start Time

  • Session ID

  • City

  • Country

  • IP

  • Device

  • Browser

  • Operating System

  • Play Duration

  • Rebuffering Percentage

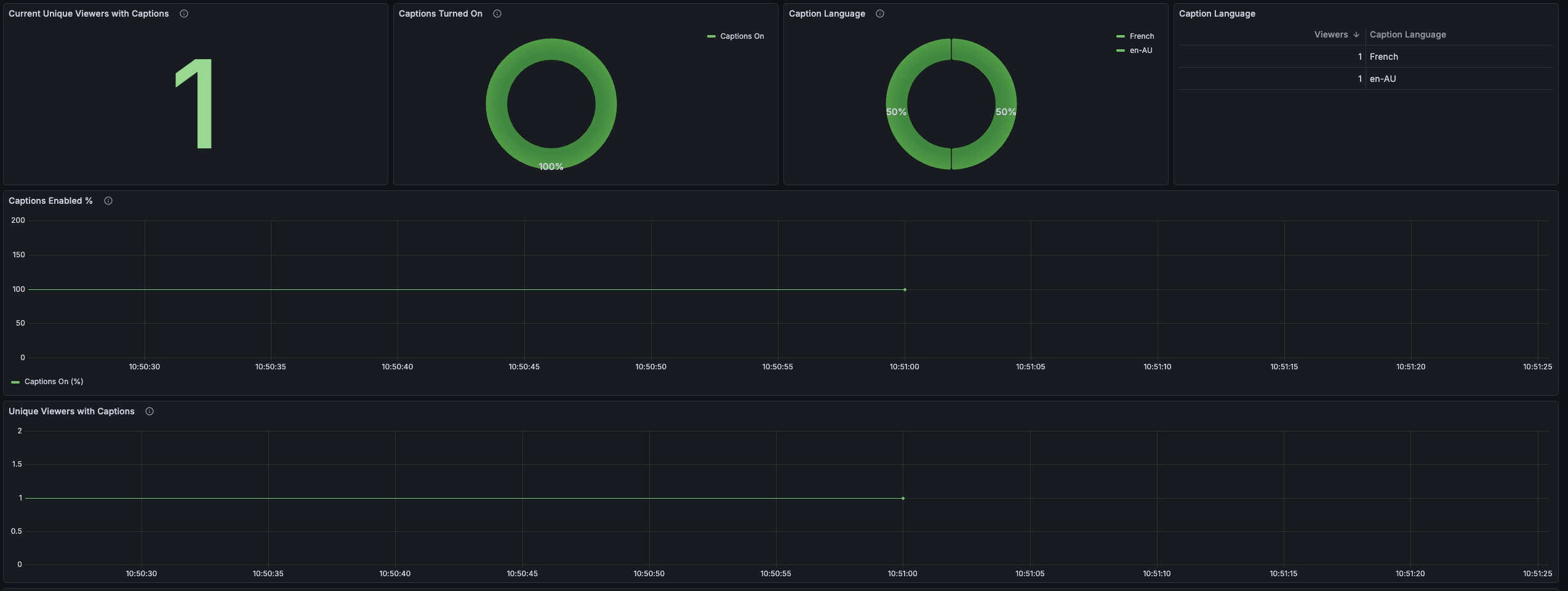

Caption/Audio Dubbing Data

The following section details caption/audio dubbing data. These two share the same charts but the data depends on if the viewer has captions enabled or audio dubbing enabled

The New Player must be used in order for these analytics to appear

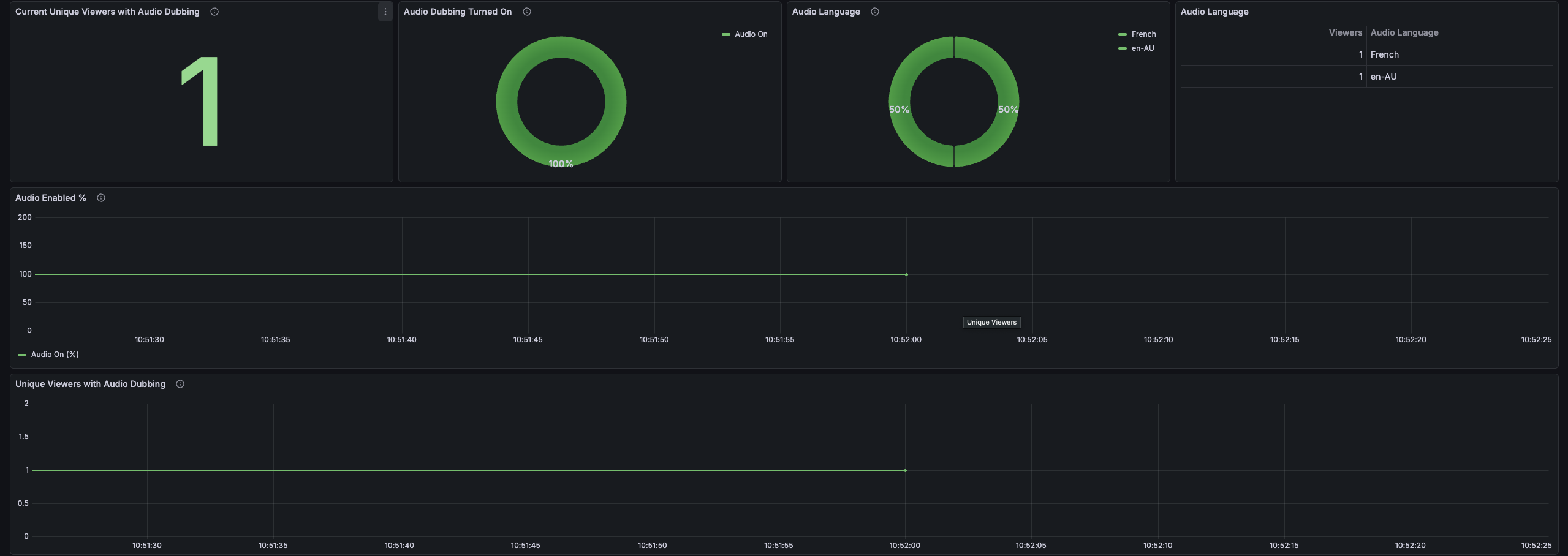

Current Unique Viewers with Captions/Audio dubbing

Total number of unique active viewers who currently have captions (subtitles)/ audio dubbing enabled within the selected time range e.g. 1

Captions/Audio dubbing turned on

Total number of unique viewers who have turned captions (subtitles)/Audio dubbing on within the selected time range.

A user will only be counted as "Captions/Audio dubbing Off" if they have not enabled captions/audio dubbing through the entire time range duration

e.g. 1

Caption/Audio dubbing language

A pie chart that shows the absolute number of unique viewers using each caption/audio dubbing language. A user can belong to multiple languages if they switch languages

e.g. English

Caption/Audio dubbing Enabled %

A timeline chart that tracks the percentage of viewers with captions/audio dubbing enabled over time. Each point represents the share of caption users out of total active viewers for that minute

e.g. 100%

Unique Viewers with caption/audio dubbing enabled

A timeline chart that shows the raw number of unique viewers who had captions/audio dubbing enabled in each time interval

e.g. 1

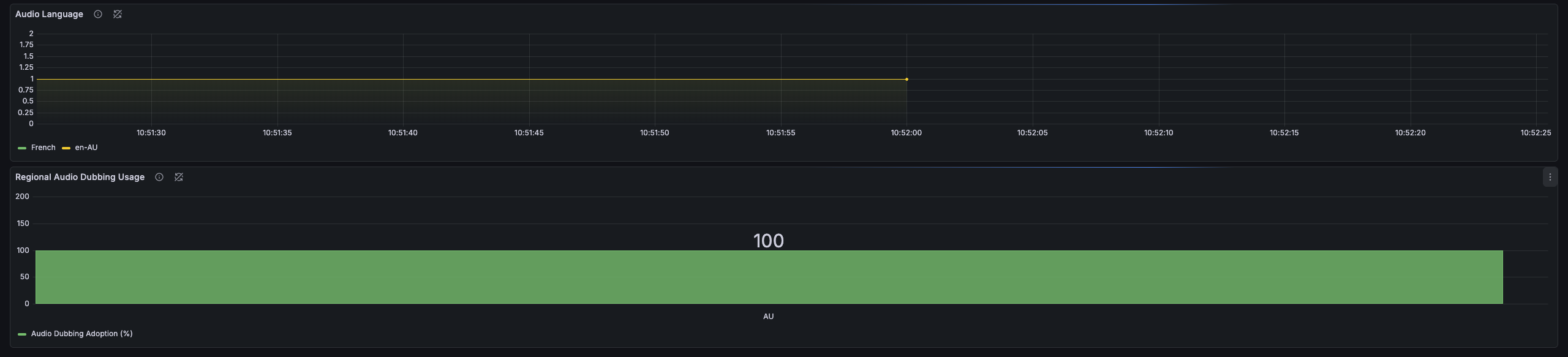

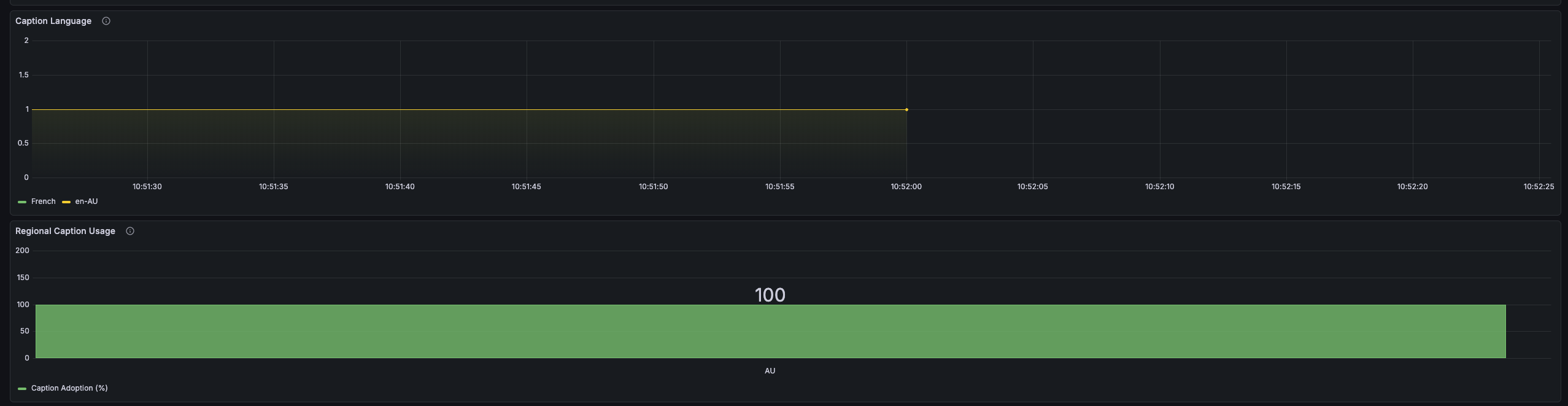

Caption/Audio dubbing language

A timeline chart that shows the raw number of unique viewers who had captions enabled in each time interval

e.g. English

Regional Caption/Audio dubbing Usage

Compares caption/audio dubbing adoption rates across countries. Each bar shows the percentage of viewers in that region who enabled captions/audio dubbing during the selected period

e.g. 100%

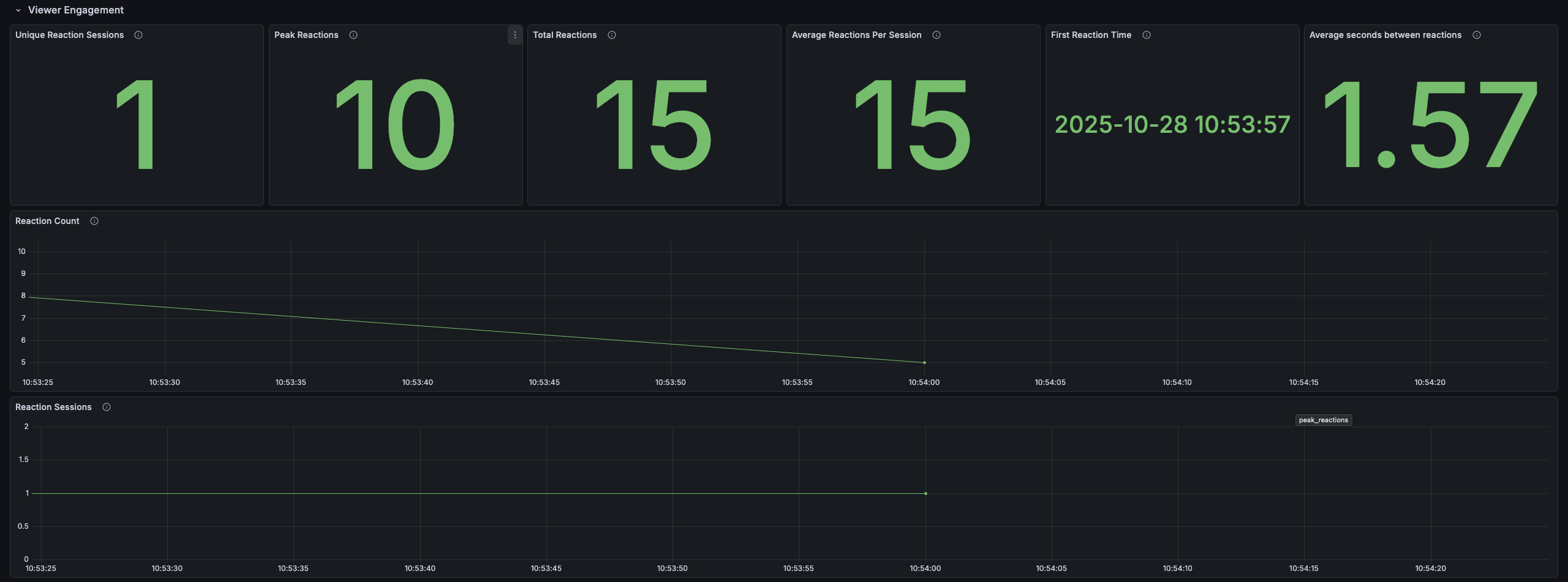

Viewer engagement data

The following section details Reactions related analytics. These will only appear if the Event has reactions enabled within the Video Player Template

Unique Reaction Sessions

Total number of distinct viewers who reacted. If a user refreshes this counts as a unique session

e.g. 1

Peak Reactions

The highest number of reactions recorded in any single minute within the selected time range

e.g. 10

Total Reactions

The total number of reactions sent by all viewers in the selected time range

e.g. 10

Average Reactions per Session

The average number of reactions sent by each active session during the selected time range

e.g. 5

First Reaction Time

The timestamp of the first recorded reaction in the selected time range

e.g.2025-10-28 10:53:57

Average Seconds between Reactions

The average time gap in seconds between one reaction and the next across all sessions

e.g. 2.35

Reaction Count

A time series showing the total number of reactions per minute across the time range e.g. 5

Reaction Sessions

A time series showing how many unique sessions were reacting per minute e.g. 3

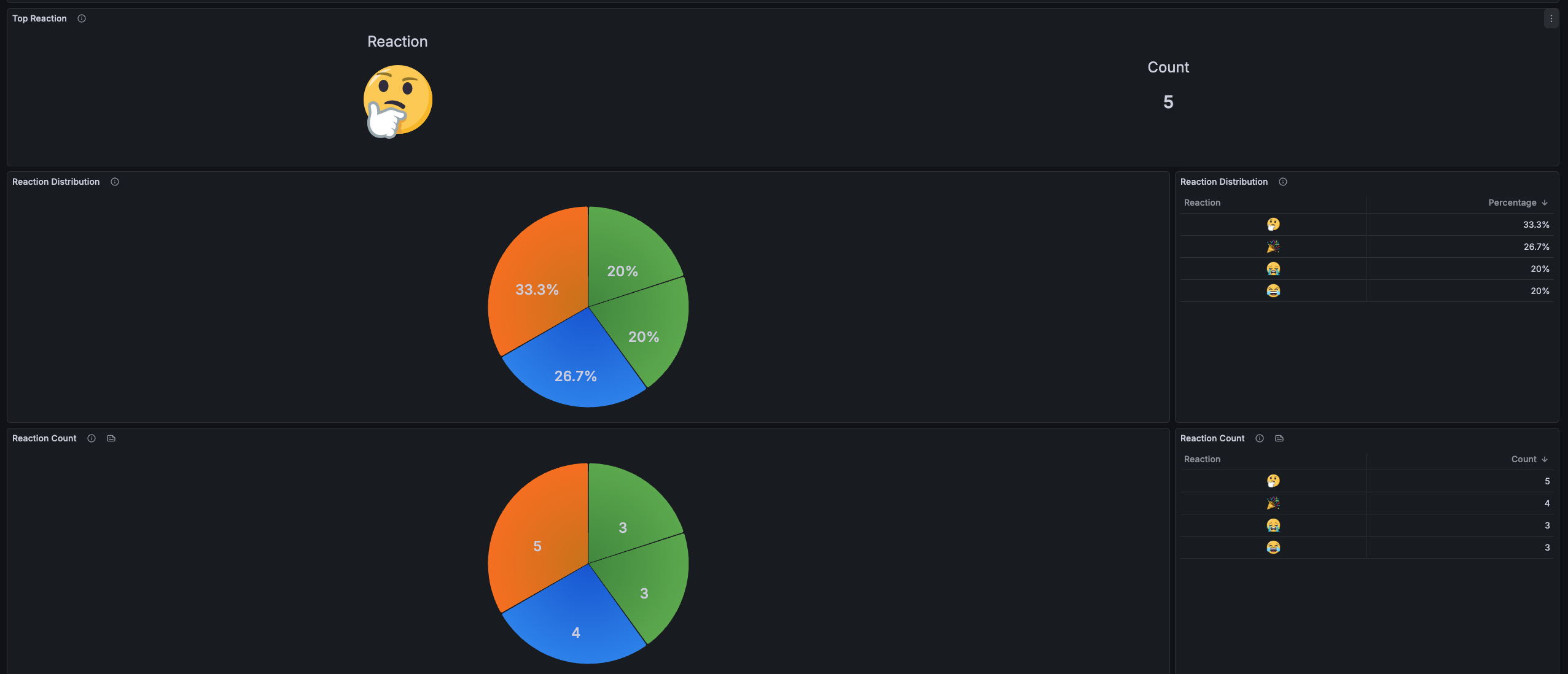

Top Reaction

The single most-used reaction during the selected time range, with its total count

Reaction Distribution

The percentage share of each reaction used during the selected time range. e.g. 10%

Reaction Count

A list of reactions and the total times each was used

Top Reaction Count (per session)

The highest number of reactions recorded from individual viewing sessions during the selected time range. Each row represents one session’s total reaction count

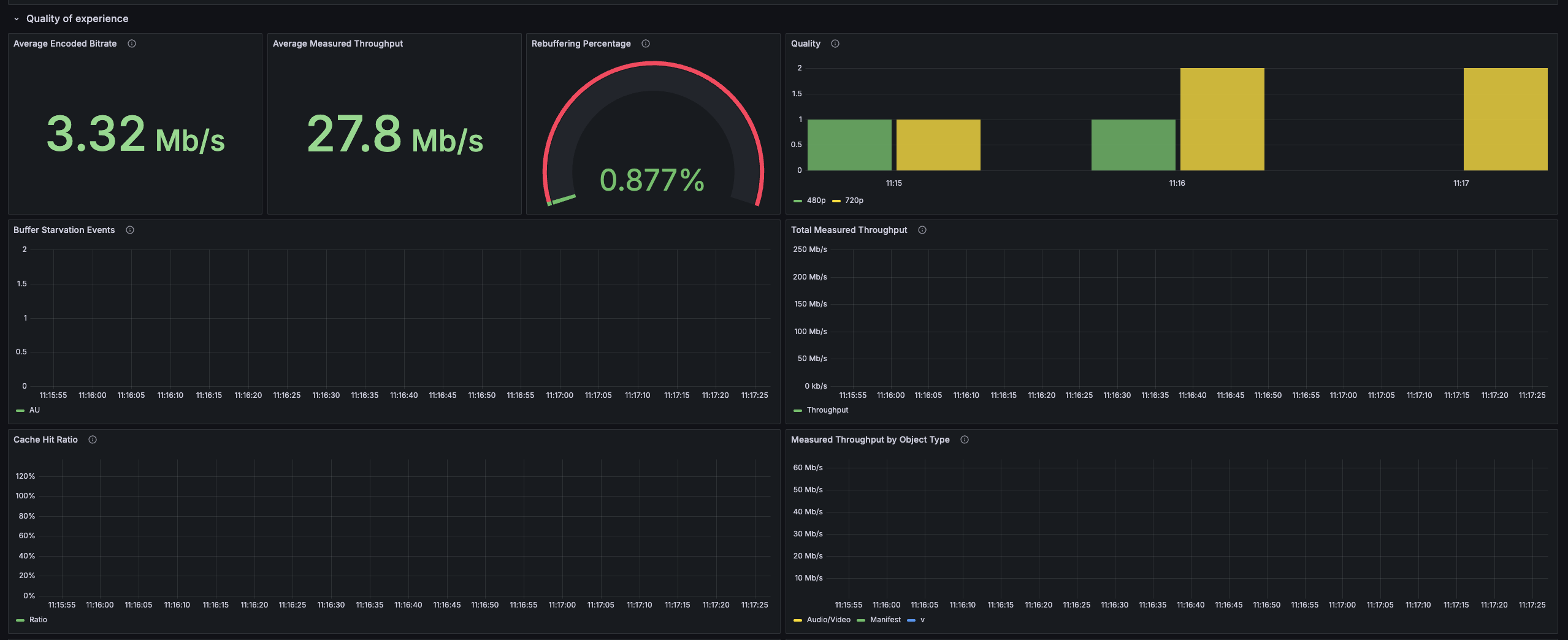

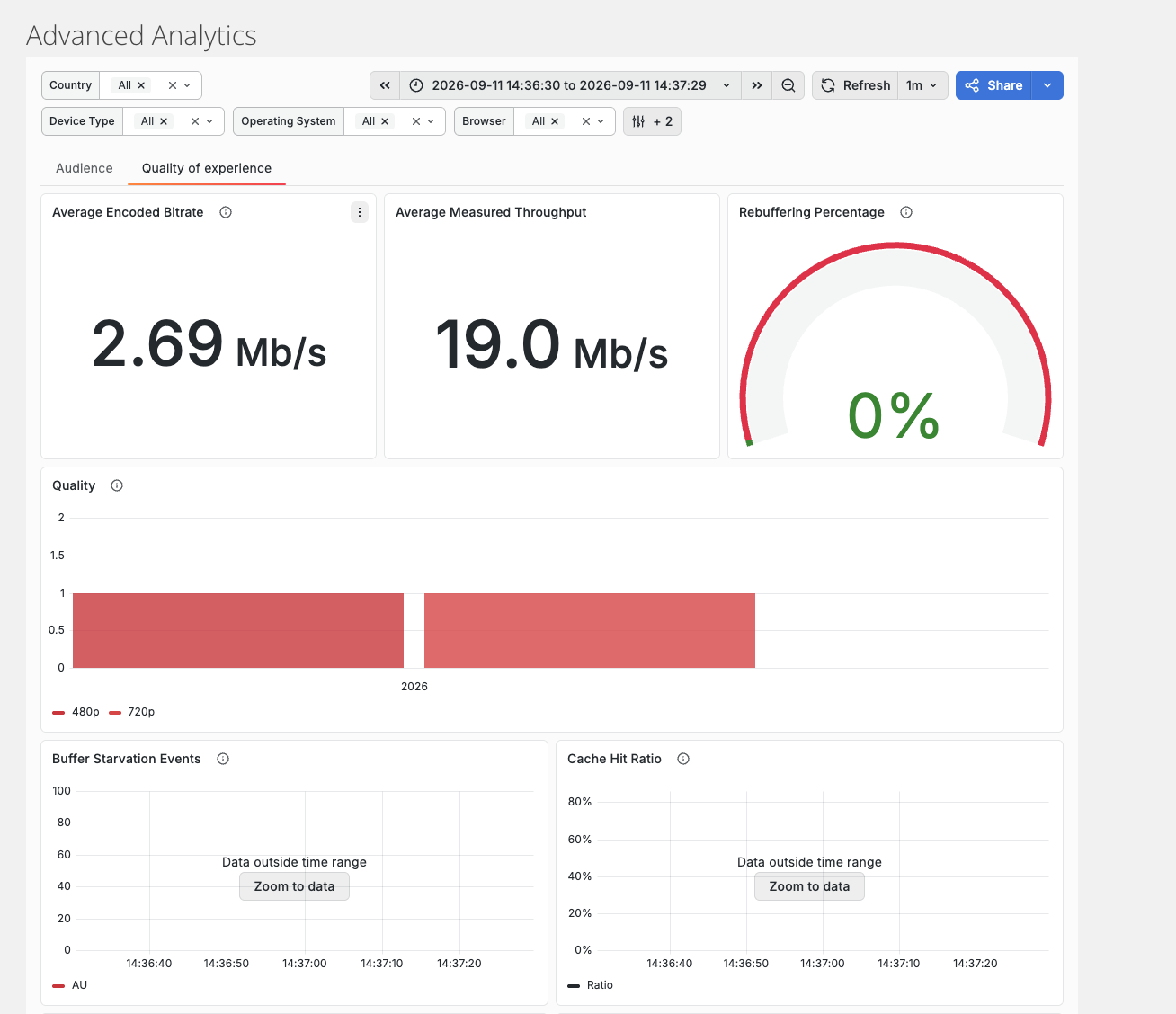

Quality of Experience

Average Encoded Bitrate

This metric shows the average bitrate at which the video was encoded during the specified time period. It represents the amount of data transmitted per second while streaming

Average Measured Throughput

This metric shows the average data transfer rate (throughput) measured during video playback over the specified time period. It represents the average amount of data successfully delivered per second

Quality

This timestream shows the number of unique viewers watching videos at different quality levels (e.g., 240p, 480p, 1080p) over the specified time period. It tracks how the number of viewers varies with each video quality

Buffer Starvation Events

This metric shows the number of buffer starvation events (when playback is interrupted due to insufficient data) broken down by country. It helps identify regions where viewers may experience frequent playback issues

Total Measured Throughput

This metric represents the total amount of data successfully transferred during video playback over the specified time period. It reflects the overall data throughput

Cache Hit Ratio

This metric measures the efficiency of the CDN cache by comparing the number of successful data retrievals (cache hits) to the total cache accesses, including both hits and misses

Measured Throughput by Object Type

This metric shows the data transfer rate (throughput) for different types of objects (e.g., video segments, images, manifests) during playback

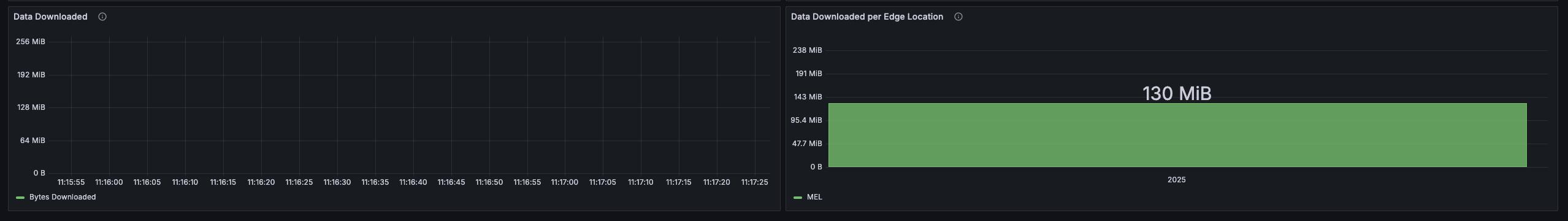

Data Downloaded

This metric represents the total amount of data downloaded from all CDN edge locations combined. It tracks the overall data transfer across the network

Data Downloaded Per Edge Location

This metric provides a quick estimation of the data downloaded from each CDN edge location, helping you assess potential expenses. It also allows you to track data consumption trends across different CDNs

Object types

The media type of the current object being requested, this applies to the Measured Throughput Graph:

  • m = text file, such as a manifest or playlist

  • a = audio only

  • v = video only

  • av = muxed audio and video

  • i = init segment

*c = caption or subtitle
*tt = ISOBMFF timed text track
*k = cryptographic key, license or certificate.
*o = other

CMCD Report

Once your event has been moved to the "Post" phase, you will be able to access and download a PDF report of the CMCD dashboards via the "View CMCD Report" button in the Event overview section. If this button is greyed out, this means that you'll need to refresh the page or the report hasn't been generated yet (please wait then refresh the page)

If your Event has Live DVR enabled, the generated PDF report will display the dashboard metrics for the Main Event phase of your event. Otherwise, the generated PDF report will generated for the last hour of your event.

If your event uses both primary and backup ingests, the report will include data for both in one combined pdf

You can also receive an email of the PDF report to the event creator once the event reaches the "Post" phase. This requires the functionality to be enabled on your account. Please contact StreamShark support if you would like to enable this functionality

Dashboard Screenshots

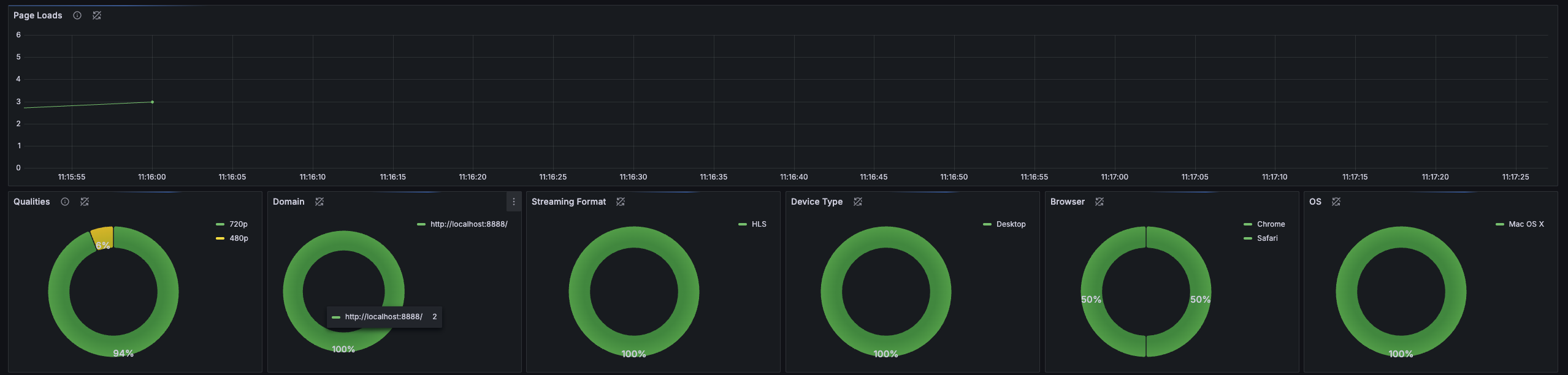

This section provides some sample screenshots of a test event to demonstrate how the statistics will look

Embedded CMCD Dashboard

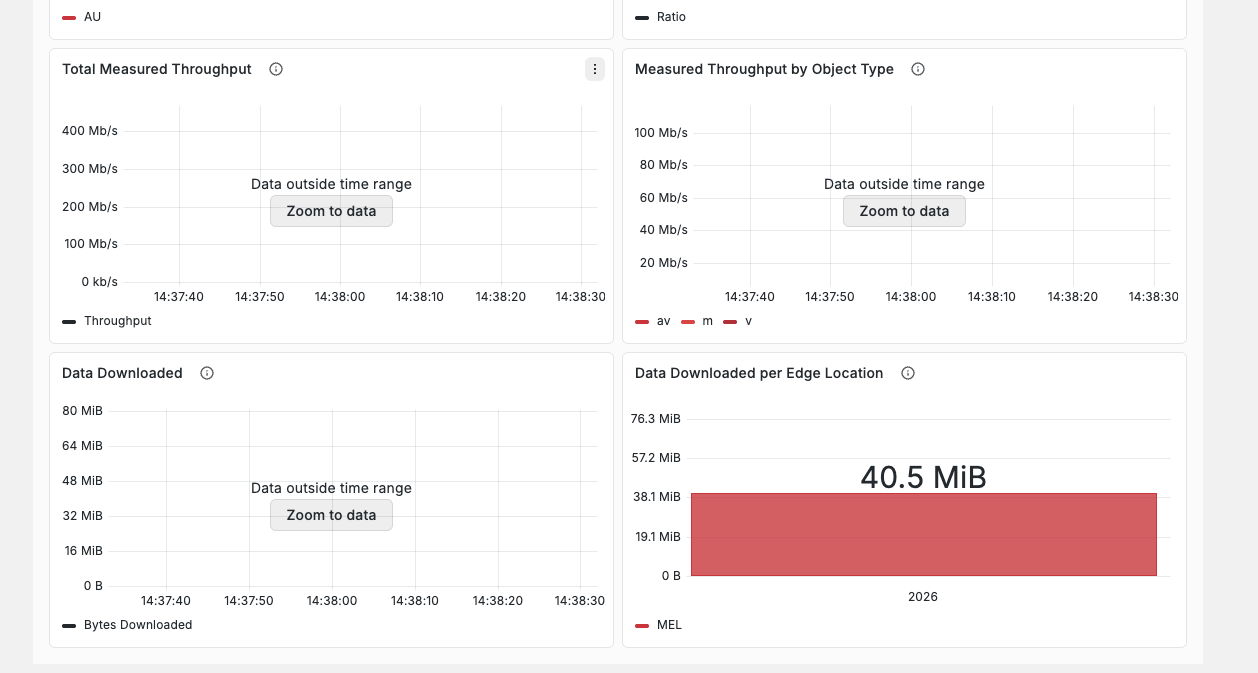

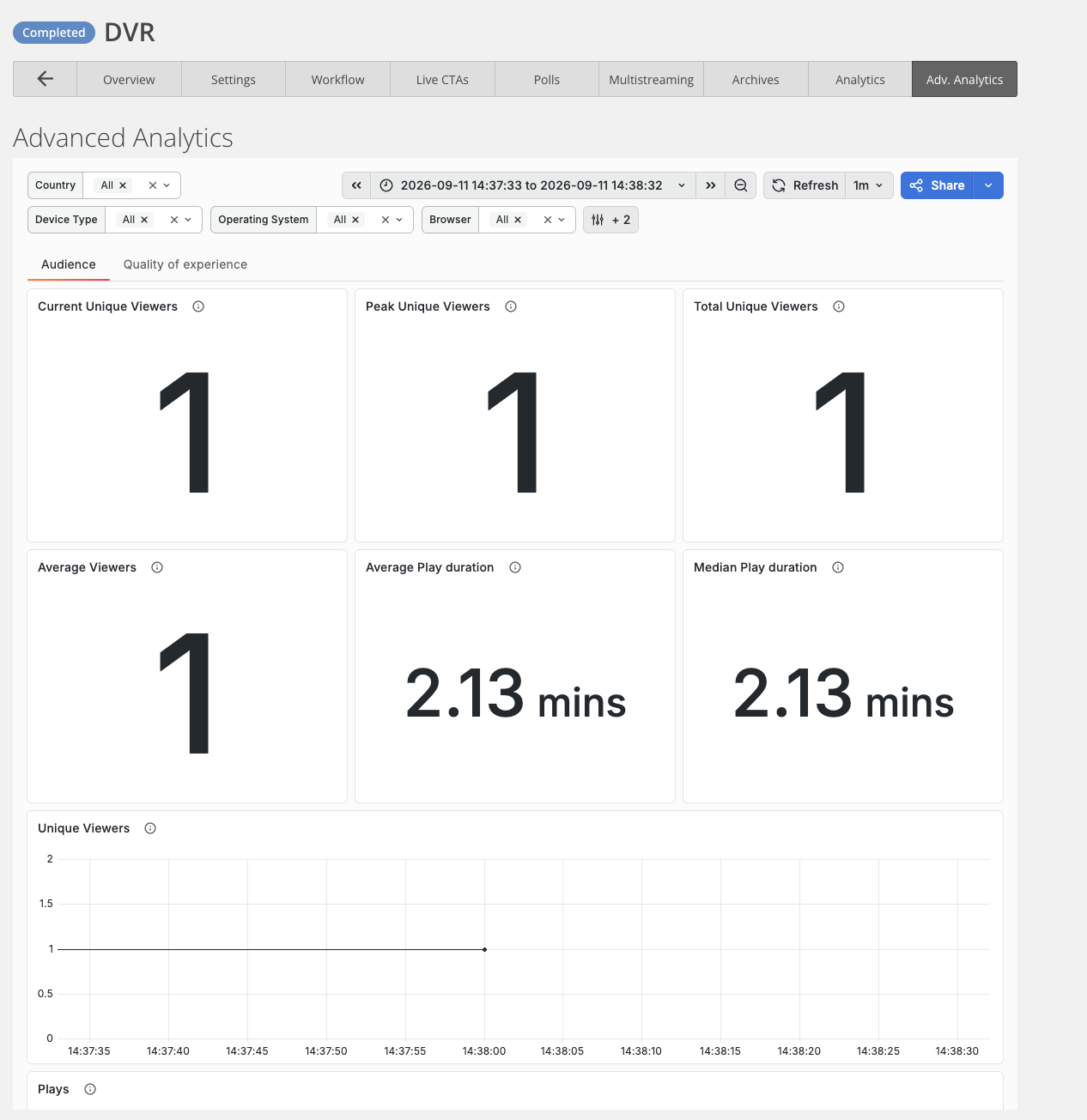

As an alternative to the Grafana dashboard links. StreamShark also offers an in house embedded CMCD Dashboard with all the same analytics within the StreamShark app. This is known as 'Advanced Analytics' and shares all the similar features of the CMCD dashboard with a few additions

  • Data is displayed in a tabbed layout instead of rows
  • Viewer Engagement (Reactions) Analytics are dynamically added depending if the event has reactions enabled within the template
  • Caption/Audio Dubbing analytics are also dynamically added depending if you are using our live captioning service otherwise they can be manually shown/hidden within the dashboard itself if you have captions/audio dubbing from external services
  • Access to this dashboard is purely through the StreamShark app and cannot be access externally through other means meaning you do not have to login to an external service to view your event data

If you would like this within your StreamShark Account. Contact your Sales Representative or Account Manager if you wish to know more, or are interested in a trial

Screenshots:
